Overview

• Pre-trained vision encoders turn images into feature vectors or feature maps.
• They provide strong starting weights so you can fine-tune with less data and time.
• Typical workflow: load a backbone, replace the classifier head, then train.

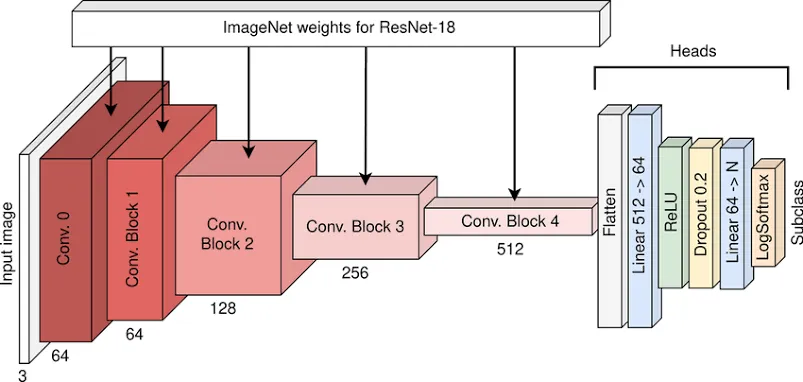

ResNet

Core idea

• Learn residual mappings so each block refines features rather than relearning them.
• Skip connections keep gradients stable in very deep networks.

How it works

• Residual block: compute $F(x)$ with a few convolutional layers, then add the input.

• Identity mapping: $y = F(x) + x$ keeps information flowing.

• Stage stacking: multiple residual stages progressively downsample and widen channels.

• What makes it unique: residual skip connections stabilise very deep CNNs.

• When to use: a reliable default for classification, detection, and segmentation.

PyTorch access

from torchvision import models

model = models.resnet50(weights=models.ResNet50_Weights.DEFAULT)
model.fc = nn.Linear(model.fc.in_features, num_classes)

Pre-activation ResNets

Key difference

• Post-activation: Conv → BN → ReLU (classic).
• Pre-activation: BN → ReLU → Conv inside the block.

Why it helps

• Cleaner identity path for the skip connection.
• Improves gradient flow and optimisation in very deep nets.

Hypothesis Space (Intuition)

• ResNets reparameterise the function space around the identity.
• Easier to search near $H(x) \approx x$ than arbitrary $H(x)$.
• Can be viewed as an ensemble of shallow paths through the network.

Architecture Comparisons

ResNet vs VGG

• VGG: deeper stacks of convs but no skips → degradation at high depth.
• ResNet: skips stabilise very deep training.

DenseNet vs ResNet

• ResNet: addition of features.
• DenseNet: concatenation of features (feature reuse).
• DenseNet improves gradient flow and feature reuse but uses more memory.

Addition vs concatenation

• Addition: same dimensionality, cheaper memory.
• Concatenation: increases channels, richer features, higher memory cost.

Failure Cases & Tradeoffs

• Very deep nets can still be hard to optimise if data is small.
• Pooling or aggressive stride can remove spatial detail (hurts localisation).
• Residuals help less when the task doesn’t benefit from depth.
• DenseNet: strong accuracy and reuse, but memory-heavy.

Practical Notes

Widely adopted in modern CNN backbones

• Residual connections are a default design in many ResNet-style models.

Improves deep-network optimization stability

• Skip connections help gradient flow with minimal parameter overhead.

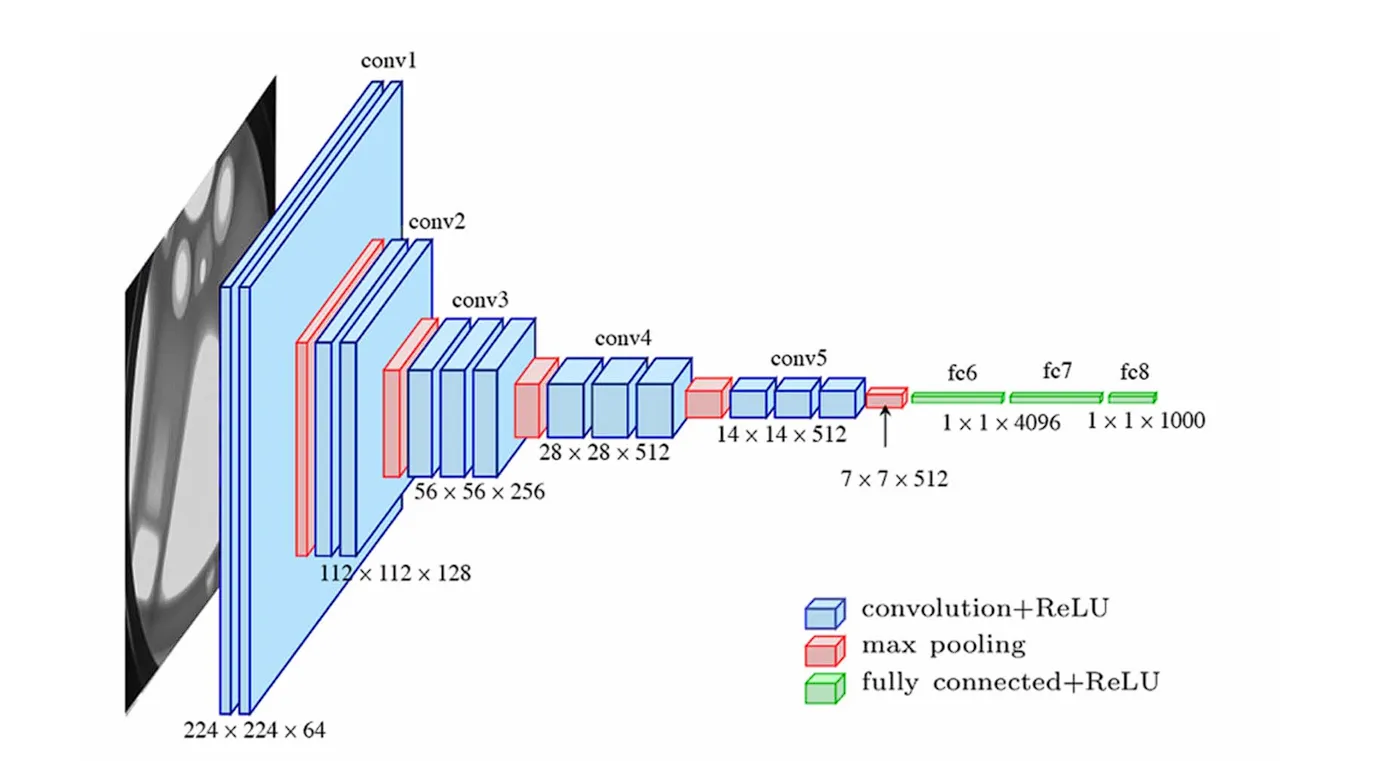

VGG

• Use simple, repeated $3 \times 3$ convolutions to build depth.
• Keep architecture uniform to make behaviour predictable.

How it works

• Conv stacks: several $3 \times 3$ layers per stage.

• Pooling: downsample after each stage to grow receptive field.

• Classifier head: large fully-connected layers at the end.

• What makes it unique: simple stacks of $3 \times 3$ convolutions and large fully-connected heads.

• When to use: baseline or feature extraction when model simplicity matters.

PyTorch access

from torchvision import models

model = models.vgg16(weights=models.VGG16_Weights.DEFAULT)
model.classifier[-1] = nn.Linear(model.classifier[-1].in_features, num_classes)

MobileNet

Core idea

• Factorise standard convolution to reduce compute on mobile hardware.
• Separate spatial filtering from channel mixing.

How it works

• Depthwise conv: one filter per input channel.
• Pointwise conv: $1 \times 1$ conv mixes channels.
• Compute saving:

• Notation:

  • $K$: kernel size (assume square).
  • $H, W$: input height and width.
  • $M$: input channels.
  • $N$: output channels.

• What makes it unique: depthwise separable convolutions to cut compute.

• Compute comparison:

• When to use: mobile and edge devices where latency and size matter.

PyTorch access

from torchvision import models

model = models.mobilenet_v3_small(weights=models.MobileNet_V3_Small_Weights.DEFAULT)
model.classifier[-1] = nn.Linear(model.classifier[-1].in_features, num_classes)

EfficientNet

Core idea

• Scale depth, width, and resolution together in a balanced way.
• Use a fixed scaling rule instead of tuning each dimension separately.

How it works

• Baseline: start from a small model.

• Compound scaling: increase depth, width, and input resolution with one coefficient.

• Consistent gains: improves accuracy while controlling FLOPs.

• What makes it unique: compound scaling of depth, width, and resolution.

• When to use: strong accuracy-per-parameter and accuracy-per-FLOP trade-offs.

PyTorch access

from torchvision import models

model = models.efficientnet_b0(weights=models.EfficientNet_B0_Weights.DEFAULT)
model.classifier[-1] = nn.Linear(model.classifier[-1].in_features, num_classes)

ConvNeXt

Core idea

• Modernise ConvNets using transformer-inspired design choices.
• Keep convolutional inductive bias but update blocks and training recipes.

How it works

• Large kernel depthwise conv captures broader context.

• LayerNorm + GELU replaces BN + ReLU for stability.

• Stage design aligns with modern training regimes.

• What makes it unique: modernised ConvNet blocks with large kernel depthwise conv, LayerNorm, and GELU.

• When to use: strong ConvNet baselines that compete with transformers.

PyTorch access

from torchvision import models

model = models.convnext_tiny(weights=models.ConvNeXt_Tiny_Weights.DEFAULT)
model.classifier[-1] = nn.Linear(model.classifier[-1].in_features, num_classes)

Vision Transformer (ViT)

Core idea

• Treat image patches as a sequence of tokens.
• Use self-attention to model global relationships across the image.

How it works

• Patchify: split into $P \times P$ patches and flatten.

• Embed + position: map to tokens and add positional encodings.

• Transformer: apply multi-head self-attention blocks.

• What makes it unique: splits images into patch tokens and applies transformer attention.

• Patch count:

• When to use: large datasets or strong pretraining where attention can shine.

PyTorch access

from torchvision import models

model = models.vit_b_16(weights=models.ViT_B_16_Weights.DEFAULT)
model.heads.head = nn.Linear(model.heads.head.in_features, num_classes)

DenseNet

Core idea

• Reuse features by connecting each layer to all later layers.
• Improve gradient flow and parameter efficiency.

How it works

• Dense block: each layer receives all previous feature maps.

• Growth rate: control how many new channels each layer adds.

• Transition layers: compress and downsample between blocks.

• What makes it unique: dense skip connections reuse features across layers.

• When to use: parameter-efficient models with strong feature reuse.

PyTorch access

from torchvision import models

model = models.densenet121(weights=models.DenseNet121_Weights.DEFAULT)
model.classifier = nn.Linear(model.classifier.in_features, num_classes)

Practical Notes

Use for transfer learning.

• Pretrained encoders usually provide stronger results and faster convergence than training from scratch on small datasets.

Freeze early layers when data is limited.

• Freezing low-level layers reduces overfitting and compute when labeled data is scarce.
